Lite Production

1/Overvier

Lite Production Series

System Features

High speed galvanometer scanning, high efficiency.

Negative pressure adsorption scraper, uniform and reliable coating.

Automatic scan path.

Detachable table, easy to operate.

Laser online measurement, technological parameter with full-automatic setting.

Liquid level automatic control.

PLC control electrical system, stable and reliable.

LCD display.

2. Technical Data

* Specifications are subject to change; consult with your sales representative for confirmation of current offering.

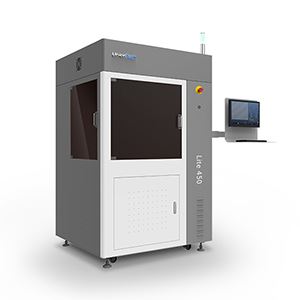

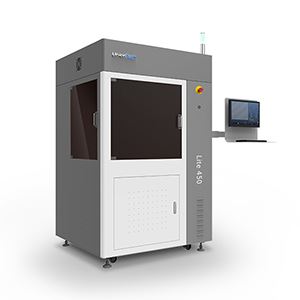

Lite 450

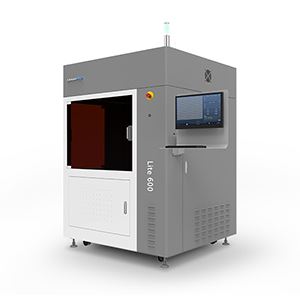

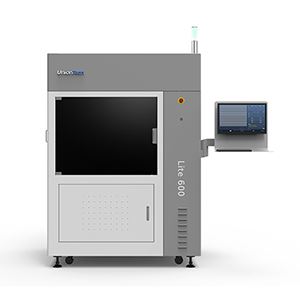

Lite 600

Build Envelope Capacity

17.7 x 17.7 x 13.8 in

(450 x 450 x 350 mm, Full Vat)

17.7 x 17.7 x 3.9 in

(450 x 450 x 100 mm, Shallow Vat)

23.6 x 23.6 x 15.7 in

(600 x 600 x 400 mm, Full Vat)

23.6 x 23.6 x 3.9 in

(600 x 600 x 100 mm, Shallow Vat)

Accuracy

Accuracy may vary depending on parameters, part geometry and size, pre-processing or post-processing methods, materials and environment.

Part size<100 mm: ±0.1 mm; Part size>100 mm: ±0.1%×L

Part size<100 mm: ±0.1 mm; Part size>100 mm: ±0.1%×L

Beam Size

A:0.12 – 0.20 mm

B:0.12 – 0.80 mm

A:0.12 – 0.20 mm

B:0.12 – 0.80 mm

Scanning Speed

A: 18m/s (Maximum);6 -10m/s (Typical) B: 15m/s (Maximum);6 -12m/s (Typical)

A: 18m/s (Maximum);6 -10m/s (Typical) B: 15m/s (Maximum);6 -12m/s (Typical)

Layer Thickness

0.002 in (0.05 mm) minimum;

0.01    in (0.25 mm) maximum

0.02    in (0.05 mm) minimum;

0.01 in (0.25 mm) maximum

Weight

1200kg

1440kg

Initial Fill

120 kg

240 kg

Machine Size (WxDxH)

1590×1400×2330mm

1770×1630×2330mm

Lite 450 / Lite 600

Type: Solid-state frequency tripled Nd: YVO4

Power (nominal) 1500 mW

Wavelength : 355 nm

Material Available: Photosensitive Resin

Operation System: Windows 7, Windows 10

Controller Software: UnionTech™ RSCON

Input Data File Format: STL

Electrical Requirements: 200~240 VAC, 50/60 Hz, single phase, 25 amps

Operating Environment:

Temperature Range: 72-79°F (22-26°C)

Relative Humidity: < 40%, no condensing
