DESCRIPTION

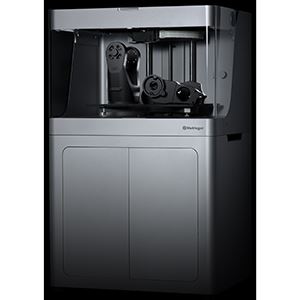

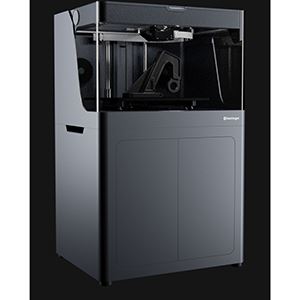

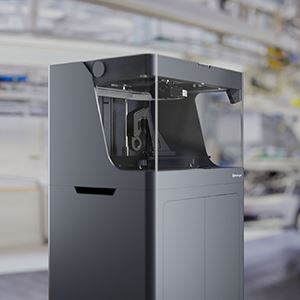

Built from the ground up for reliable performance, the X7 delivers breakthrough quality and precision in 3D printing. The top-of-the-line industrial grade platform features a strengthened dual nozzle print system that supports Continuous Carbon Fiber and Kevlar reinforcement. Laser inspection scans parts mid-print to ensure dimensional accuracy for the most critical tolerances.
MARKFORGED X7 PRINTER SPECIFICATIONS:
- PRINTER PROPERTIES
+ Process: Continuous Fiber Reinforced Plastics
+ Build Volume: 330 x 270 x 200 mm (13 x 10.6 x 7.9 in)
+ Weight: 48 kg (106 lbs)
+ Machine Footprint: 584 x 483 x 914 mm (23 x 19 x 36 in)
+ Print Bed: Flat to within 80 um – Kinematic coupling
+ Laser: In Process Inspection, Active Print Calibration, Bed Leveling
+ Power: 100-240VAC, 150W (2A peak)
- PART PROPERTIES
+ Layer Height: 100um default, 50um minimum
+ Ultimate Tensile Strength: 700 MPa (22.6x ABS, 19.4x Onyx)
+ Max Flexural Stiffness: 51 GPa (24.8x ABS, 17.6x Onyx)
+ Infill: Closed Cell Infill – Multiple geometries available
- SOFTWARE
+ Supplied Software: Markforged Eiger – Cloud Storage
+ Security: Two Factor Auth, Org Admin Access, Single Sign On
- MATERIALS
+ Plastics Available: Onyx, Nylon White; Onyx ESD; Onyx FR
+ Fibers Available: Carbon Fiber, Fiberglass, Kevlar, High Strength/High Temp Fiberglass
