1/ Overview
Pilot SD
A New Dimension in Stereolithography 3D Printing
- Cost-effective ownership throughout entire life cycle.
- Freedom to collaborate and innovate: open design for materials and machine access.

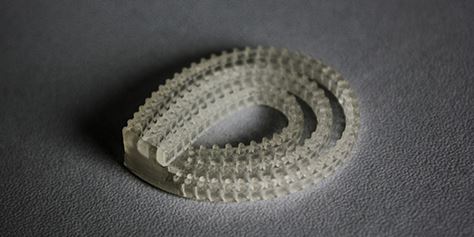

- Printed parts demonstrate excellent sidewall quality and fine detail, contributing to lower post-finishing requirements.
System Features
- Scanning speed of up to 12 m/s.
- Closed loop control regulates platform movement, laser power, resin level, resin temperature, and vacuum pressure to ensure accuracy and stability.
- Automatic control of surface level and processing parameters.
- Granite recoater rim for enhanced stability.
- Layer Thickness as low as 0.002 in (0.05 mm) for excellent surface quality.
- Ethernet Connectivity.
- Plunger-style leveling.
- Pump-fed auto refill capability.
- Components from top international brands – Spectra-Physics, SCANLAB, and Panasonic.
- Full freedom of choice in materials: equipment uses any 355 nm SL material.
- Three level of access (Operator, Engineer, Expert) controlled by user.

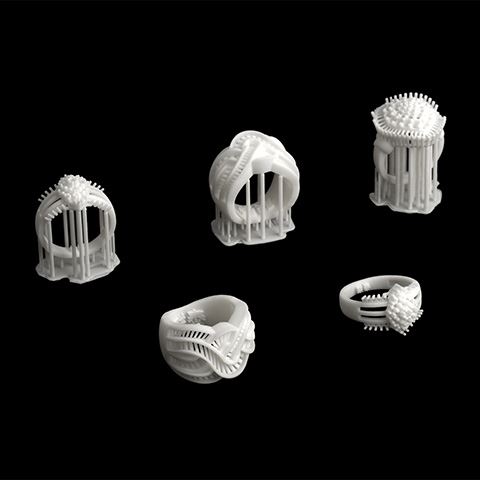

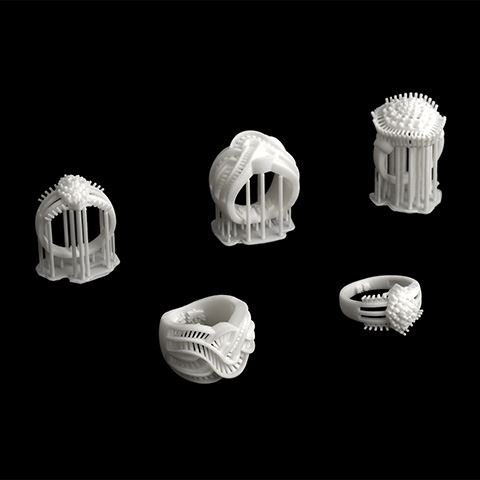

Versatile Application Range – High Accuracy – Excellent Surface Aesthetics
2/ Technical Data
| Technical Data: *Specifications are subject to change; consult with your sales representative for confirmation of current offering | |
| Build Envelope Capacity | 9.8 x 9.8 x 9.8 in
(250 x 250 x 250 mm) |
| Maximum Part Weight | 38.6 Ib (17.5 kg) |
| Accuracy | L < 1 in (25.4 mm): ±0.001 in (±0.025 mm)
L ≥1 in (25.4 mm): ±0.1 % x L Accuracy may vary depending on parameters, part geometry/size, pre-processing or post-processing methods, materials, and environment. |
| Z Axis Positioning Accuracy | ≤±8µ |
| Liquid Level Positioning Accuracy | ≤±0.001 in (0.03 mm) |
| Laser | Solid-state frequency tripled Nd: YVO4 |
| Wavelength | 354.7 nm |
| Beam Size | High Resolution (0.002 – 0.003 in/ 0.06-0.08mm) or standard (0.005-0.008 in/ 0.12-0.20 mm) option |
| Scanning Speed | 6-12 m/s |
| Controller | UnionTech™ RSCON |
| Part Preparation | Materialise Magics |
| Operating Systems | Window 7, Window 10* |
| Input Data File Format | STL |
| Network Type and Protocol | Ethernet, IEEE 802.3 using TCP/IP and NFS |
| Layer Thickness | 0.002 in (0.05 mm) minimum; 0.01 in (0.25mm) maximum |
| Electrical Requirements | 200 – 240 VAC/ 50-60 Hz, single phase, (110-120 VAC, 60 Hz, with converter |
| Laser Warranty | 5000 hours or 15 months (whichever comes first) |
| Base Plate/ Recoater Rim | Granite |
| Systems Control | Closed-loop |
| Weight | 2,315 Ib (1,050 kg) with 110 Ib (50 kg) initial fill inside |
| Power (nominal) | At head 800 mW (typical 300 mW at material surface under nominal optical path conditions |
| Operating Environment | |
| Temperature Range | 72-79°F (22-26°C) |
| Maximum Change Rate | 1°C /hour |
| Relative Humidity | < 40% non-condensing |
| Space Requirements
(W x D x H) |
43.5 x 44 x 77.4 in (1,105 x 1,118 x 1,965) |
| Accessories | |
| Additional Resin Vat | Optional |
| Processing and Finishing | Post-curing unit |
| System Warranty | One-year warranty under UnionTech’s Purchase Terms and Condition |
