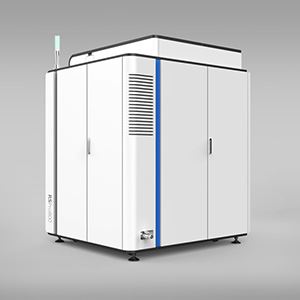

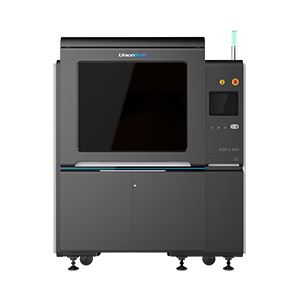

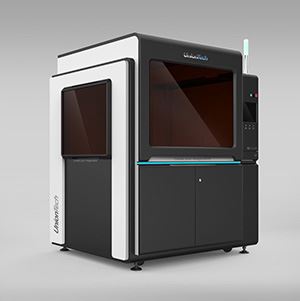

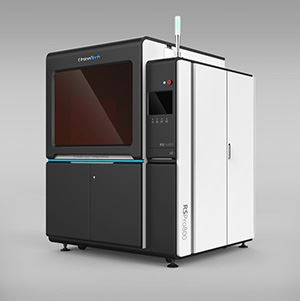

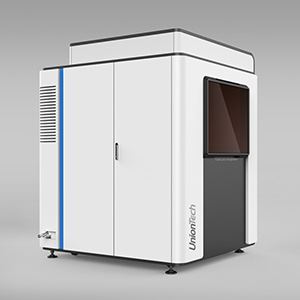

RSPro 800

1/ Overview

RSPro Production Series

A New Dimension in Stereolithography 3D Printing

  • Cost-effective ownership throughout entire life cycle.
  • Freedom to collaborate and innovate: open design for materials and machine access.

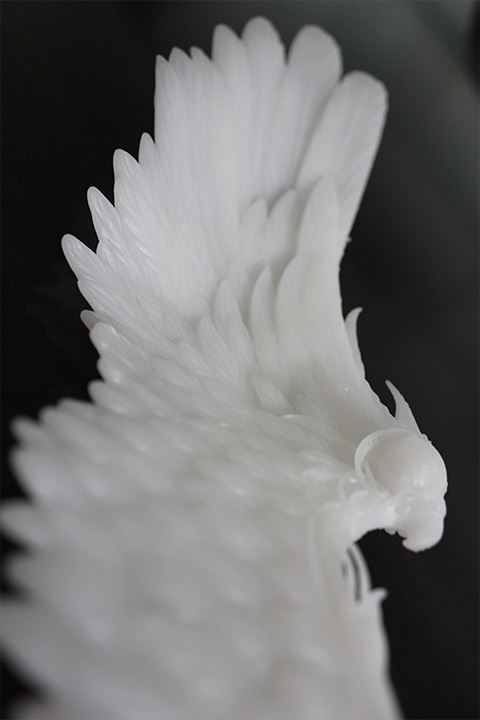

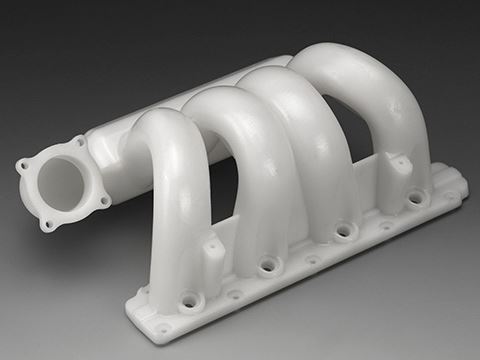

  • Printed parts demonstrate excellent sidewall quality and fine detail, contributing to lower post-finishing requirements.

System Features

  • Scanning speed can reach 15m/s.
  • Key components from international top brands, Panasonic of Japan, Optowave/ Spectra-Physics of America/ Germany, Scanlab of Germany.
  • Automatic control of surface level and processing parameters.
  • Granite recoater frame for enhanced recoating stability.
  • Closed loop control strategy for: Platform movement/ Laser power/ Material level/ Temperature/ Vacuum
  • CE certification.
  • Convenient assembly and disassembly of platform.

Versatile Application Range – High Accuracy – Excellent Surface Aesthetics

2/ Technical Data

Technical Data: *Specifications are subject to change; consult with your sales representative for confirmation of current offering
Build Envelope Capacity31.5 x 31.5 x 21.7 in

(800 x 800 x 550 mm)

Maximum Part Weight330.7 Ib (150 kg)
Accuracy (Accuracy may vary depending on parameters, part geometry and size, pre-processing or post-processing methods, materials and environment)Part size <3.9 in (100 mm): ±0.006 in (±0.15 mm)

Part size ≥3.9 in (100 mm): ±0.15% x L

Beam SizeNominal 0.005 – 0.008 in (0.12-0.20mm)
Scanning Speed15 m/s (Maximum); 6 – 10m/s (Typical)
Layer Thickness0.002 in (0.05 mm) minimum;

0.01 in (0.25mm) maximum

Weight4409 Ib (2000kg)

(with 1235Ib (560kg) initial fill inside)

Machine Size (WxDxH)70.8 x 63.1 x 83.4 in

1798 x 1602 x 2118mm



PILOT 600/800:

LaserSolid-state frequency tripled Nd: YVO4
Wavelength355nm
ControllerUnionTech™ RSCON
Part PreparationMaterialise Magics
Operating SystemsWindow 7, Window 10*
Input Data File FormatSTL
Network Type and ProtocolEthernet, IEEE 802.3 using TCP/IP and NFS
Electrical Requirements200 – 240 VAC, 50-60 Hz, single phase
Laser Warranty5,000 hours or 15 months (whichever comes first)
Recoater FrameGranite
Systems controlClosed-loop
Power (nominal)Typically 300~800 mW (@100kHz) on the target surface of the material under nominal optical path condition
Operating Environment
Temperature Range72 – 79°F (22 – 26°C)
Maximum Change Rate1°C/hour
Relative Humidity<40% non-condensing
Accessories
Platform Change CartsManual offload cart (optional)
Processing and FinishingPost-Curing Unit (optional)
System WarrantyOne-year warranty (Under UnionTech’s Purchase Terms and Conditions)
